Emulator

Spectrum Digital JTAG Emulators The Spectrum Digital XDS family offers various debug probes (emulators) for TI processors. The XDS family features the lowest cost of debug probes while supporting the traditional JTAG standard (IEEE1149.1). Also, all XDS debug probes support Core and System Trace in all ARM and DSP processors that feature an Embedded Trace Buffer (ETB). Spectrum Digital XDS JTAG Emulators support Texas Instruments Digital Signal Processors and MCUs with the JTAG interface.


  • Supports TI C28xx, C550x, C674x, C64+, TMS470 ARM 9, ARM Cortex Digital Signal processors only with JTAG Interface.
  • Supports targets with 14-pin JTAG header

    •

  • Supports TI F28xx, C54xx, C55xx, C674x, C64+, C66x, TMS470, ARM 9, ARM Cortex Digital Signal processors only with JTAG and CJTAG Interface.
  • Supports targets with CTI20 or TI14-pin JTAG headers

    •

  • Supports TI Processors with CJTAG/JTAG Interface
  • USB 2.0 interface to host, no adapter card required
  • Advanced emulation controller for high performance

    •

  • Supports TI Processors with JTAG Interface (IEEE 1149.1) (C24x, F240x, F28xxx, VC33, C5xxx, C6xxx, TMS470 ARM, OMAP, DaVinci)
  • Supports USB 1.x and USB 2.0 (full speed)

    •

  • Supports TI Processors with JTAG Interface (IEEE 1149.1)

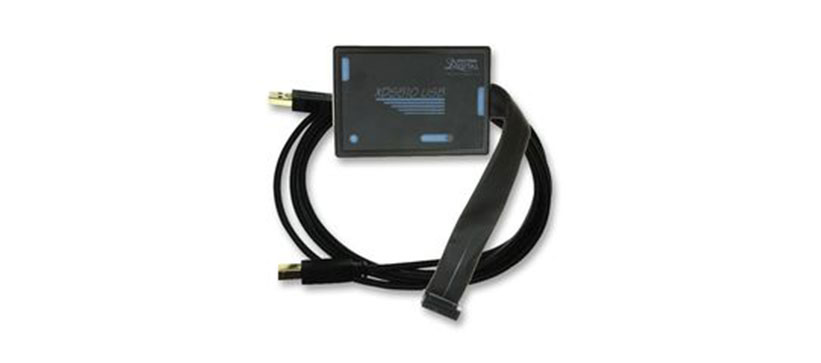

  • Compatible with Spectrum Digital XDS510USB
  • Compatible with USB 2.0 interface on PC, no adapter card required

    •

  • Supports TI Processors with JTAG Interface (IEEE 1149.1) (C2xx, C24x, F240x, F28xxx, VC33, C4x, C5x, C5xxx, C6xxx, TMS470 ARM, OMAP, DaVinciTM)
  • Compatible with Low voltage Adapters


    • image

  • Supports following TI Processors families: C64x+, ARM, C28xxx, OMAP3-5, C5000, C6000, OMAP-L137, C6A816x, C66xx, AM1xxx, AM3xxx with JTAG and CJTAG interfaces

    •

  • Supports following TI Processors families: C64x+, ARM, C28xxx, OMAP3-5, C5000, C6000, OMAP-L137, C6A816x, C66xx, AM1xxx, AM3xxx with JTAG and CJTAG interfaces

    •

  • Supports Texas Instrument’s Digital Signal Processors with JTAG interface (IEEE 1149.1)
  • 5 LEDs for operational status.

    •
