ARM

ARM Cortex M4F Design Tools

TM4C123x MCUs integrate ARM’s cortex M4F CPU with single precision floating point core operating upto 80 MHz & high performance ADC while still providing low power modes that consume a little 1.6 uA. Applications: Home, Building & Industrial applications

TM4C129x are industry’s first ARM cortex M4F based MCUs with integrated Ethernet MAC+PHY, enabling users to create a new class of highly connected products bridging the cloud & amplifying the ever growing IOT. Applications: IOT gateways, Linked Home/Building automation, networked sensor gateways, connected Human Machine Interface


The TM4C123G LaunchPad Evaluation Kit is a low-cost evaluation platform for ARM Cortex-M4F based microcontrollers from Texas Instruments. The design of the TM4C123G LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module.




The SimpleLink™ MSP432P401R LaunchPad™ development kit enables you to develop high-performance applications that benefit from low-power operation. It features the MSP432P401R – which includes a 48MHz ARM® Cortex®-M4F, 80uA/MHz active power and 660nA RTC operation, SAR Precision ADC with 16-bit performance and AES256 accelerator.



Features a Tiva C Series TM4C123GH6PGE microcontroller in a 144-LQFP package, a color OLED display, USB OTG connector, a microSD card slot, a coin-cell battery for the low-power Hibernate mode, a CAN transceiver, a temperature sensor, a nine-axis sensor for motion tracking, and easy-access through-holes to all of the available device signals.

The Sensor Hub BoosterPack is a Tiva platform for evaluating the use of ARM® Cortex™-M4-based TM4C devices in sensor fusion applications, demonstrating the mathematical and algorithm computation features of the M4 architecture.

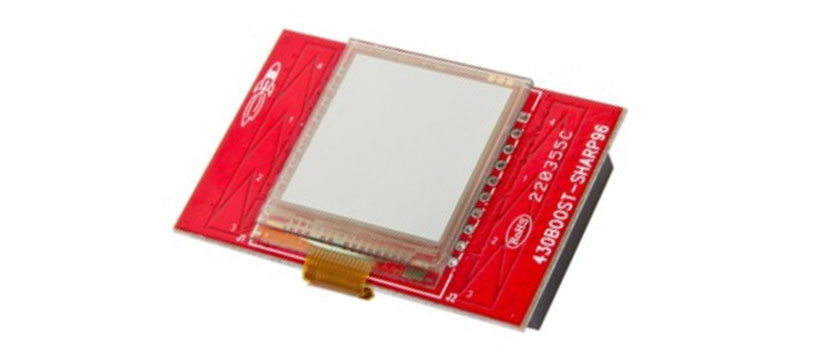

  • Sharp LS013B4DN04 Memory LCD
  • 1.3" inch screen offering 96 x 96 pixels
  • Ultra-Low-Power consumption
  • Provides excellent viewing angles & high contrast images or text
  • 2 capacitive touch sliders
  • Graphics Library support and Capacitive Touch Library support and example available

    •

  • CC3100 Wi-Fi Network Processor in QFN package for IOT applications
  • Industry’s first devices to be Wi-Fi CERTIFIED™ at the chip level by the Wi-Fi Alliance™
  • 2 20-pin stackable connectors (BoosterPack headers) to connect to TI LaunchPads and other BoosterPacks

    •
