C6000 Power Optimized DSP This family offers low power, real time signal processing engine with floating & fixed point DSPs. Applications Audio equipment, Analytics, Private mobile radios, Industrial Automation, Currency Inspection, Machine Vision, Smart metering, Biometric Identification, Portable medical equipment, Test & Measurement equipment.

TMS320C6748 LCDK

LCDK is an easy-to-use development tool for beginners and experienced users alike for creating low power and low cost solutions for biometric, analytics, audio and communication based applications. The LCDK offers everything you need to get started with your DSP projects.

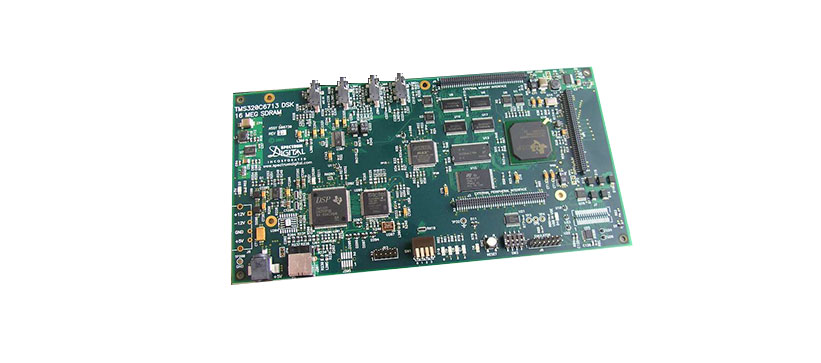

C6713 DSK

The C6713 DSK is based on the TMS320C6000 DSP platform designed to needs of high-performing high-precision applications such as pro-audio, medical and diagnostic. Other Designers can readily target the TMS32C6713 DSP through TI´s robust and comprehensive Code Composer Studio™ DSK development platform.

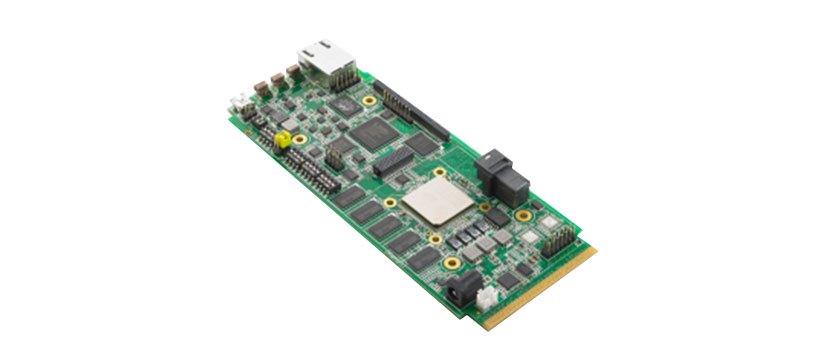

C6678 Lite Evaluation Module

The TMS320C6678 Lite Evaluation Modules (EVM) are easy-to-use, cost-efficient development tools that help developers quickly get started with designs using the C6678 or C6674 or C6672 multicore DSP. The EVMs include an on-board, single C6678 processor with robust connectivity options that allows customers to work on a standalone board.

DM6437 Digital Video Dev Kit

The DM6437 EVM is a PCI based or standalone development platform that enables users to evaluate and develop applications for the TI DaVinci processor family. Schematics, list of materials, and application notes are available to ease hardware development and reduce time to market.

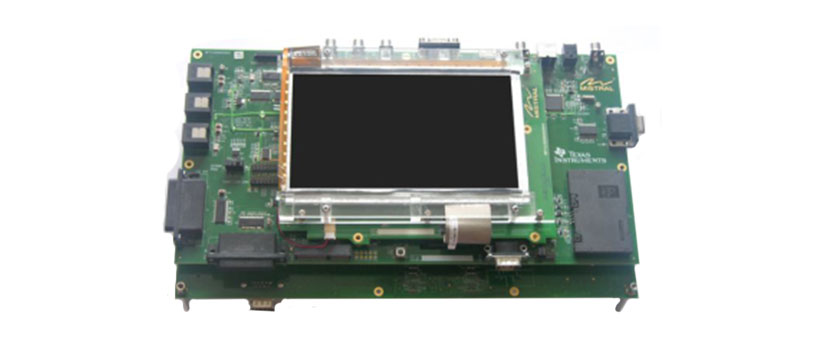

DM814X Evaluation Module

DM814x DaVinci™ digital media processors (DM8148, DM8147, DM8146 and AM387x Sitara™ ARM MPUs (AM3874, AM3872, AM3871) and begin building solutions such as surveillance DVRs, video conferencing systems, video broadcasting systems, media servers, single-board computers, gateways, routers, servers, industrial automation, human machine interfaces (HMIs), point-of-service data terminals, amongst many others.

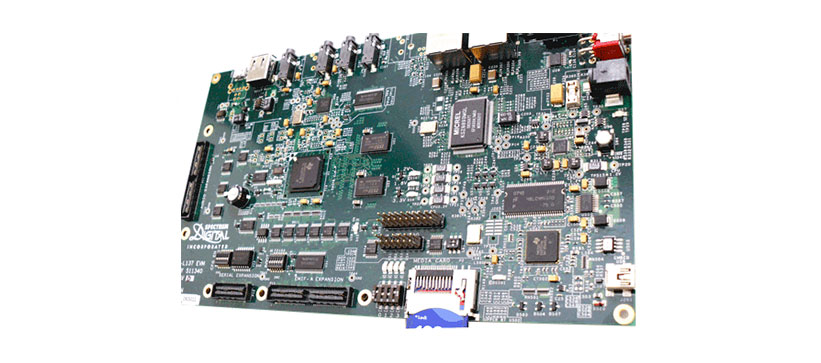

OMAPL137 Starter Kit

The Starter Kit (SK) features the OMAP-L137 applications processor and is designed for applications that require floating-point precision and fixed-point performance for energy-efficient, connected applications, such as audio, medical and industrial. Designers can readily target both the OMAP-L137 applications processor, C6747, C6745 and C6743 DSPs

C5000 Ultra Low Power DSP This family offers efficient signal processing for ultra low power, compact size embedded products. Applications Wireless audio devices, Echo cancellation headphones, Portable medical devices, Voice applications, Industrial controls, Fingerprint Biometrics, Software Defined Radio.

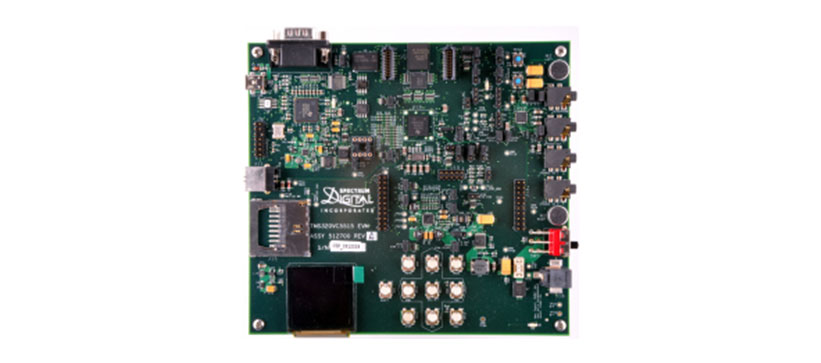

C5515 Evaluation Module

The TMS320C5515 are industry’s lowest power 16-bit processors helping conserve energy at exceptional levels and enabling longer battery life. C5515 provide low power foundation for a range of signal processing applications, including voice recorder, musical instruments, portable medical solutions and other consumer electronics in industrial and security applications.

C5515 eZDSP USB Stick

The TMDX5515eZDSP is a small form factor, low-cost, USB-powered DSP development tool which includes all the hardware and software needed to evaluate the ultra-low-power 16-bit TMS320C5515 DSP. The USB port provides enough power to operate the ultra-low-power C5515 DSP so no external power supply is required.

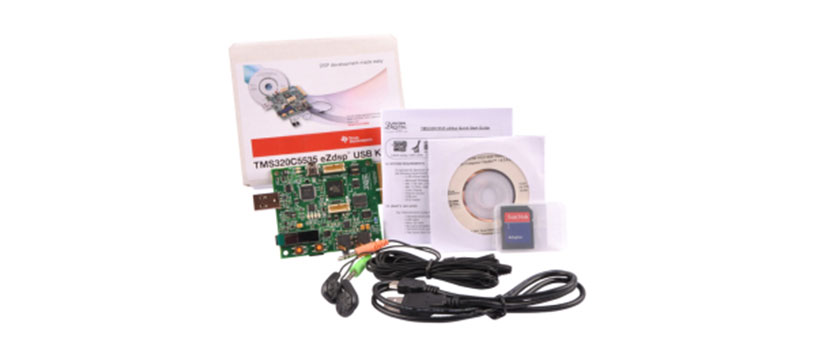

C5535 eZDSP USB Stick

The TMDX5535eZdsp is a small form factor, very low cost USB-powered DSP development kit which includes all the hardware and software needed to evaluate the C553x and C5545 DSP families, which are the industry’s lowest-cost and lowest power 16-bit DSP. This ultra-low-cost kit allows quick and easy evaluation of the advanced capabilities of the C5532, C5533, C5534, C5535 and C5545 processors.

C5517 Evaluation Module

C5517 provides a foundation for a range of signal processing applications, including analytics, medical, mission critical, and radio applications. In addition, it adds multiple enhanced peripheral options including McSPI, McBSP, MMC/SD, USB, ADC and UHPI

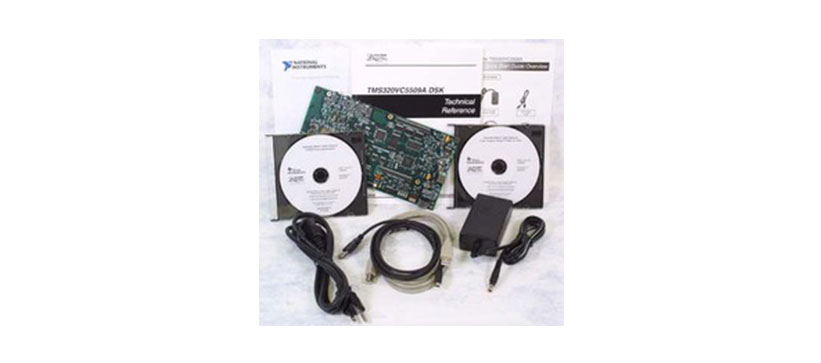

C5509 Power Management DSK

The 5509A DSK is a low-cost standalone development platform that enables users to evaluate and develop applications for the TI C55XX DSP family. The DSK also serves as a hardware reference design for the TMS320VC5509A DSP

C2000 Ultra Low Power DSP C2000 Real-time Control MCUs are C28x-based 32-bit microcontrollers with a high-performance core and application-tuned peripherals designed for real-time control applications. Its math-optimized core gives designers the means to improve system efficiency, reliability and flexibility. Powerful integrated peripherals make these real-time devices the perfect single-chip control solution for the variety of applications.
Applications Motor Drive & Control, Electric vehicles, Digital Power, Industrial Drives & Automation, LED Lighting, Solar Power, Home Appliance.

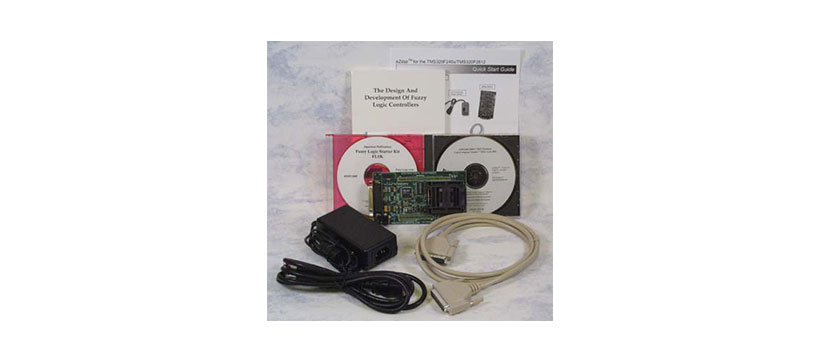

eZdsp F2812 DSP Kit

The eZdsp F2812 is a stand-alone module permitting engineers and software developers evaluation of certain characteristics of the TMS320F2812 DSP to determine processor applicability to design requirements. Evaluators can create software to execute onboard or expand the system in a variety of ways

eZdsp F28335 DSP Kit

The eZdsp F28335 kit is a complete software development platform for the TMS320F2833x series of floating point DSP, it includes an F28335 target with integrated emulation features. It also features communication interfaces for quick development

Jacinto 6 Infotainment EVM Jacinto 6 infotainment applications processors are built to meet the intense processing needs of the modern infotainment-enabled automobile experiences. The device enables Original-Equipment Manufacturers (OEMs) and Original-Design Manufacturers (ODMs) to quickly implement innovative connectivity technologies, speech recognition, audio streaming, and more. Jacinto 6 devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set.

JACINTO 6 INFOTAINMENT EVM

TVP5158 Video Decoder

Audio Input: 2 x Mic, 1 x Stereo

Audio Output: 3 x Stereo

Composite Video Input

FPD-Link

3 x Composite Camera Video Inputs

RF Antennas

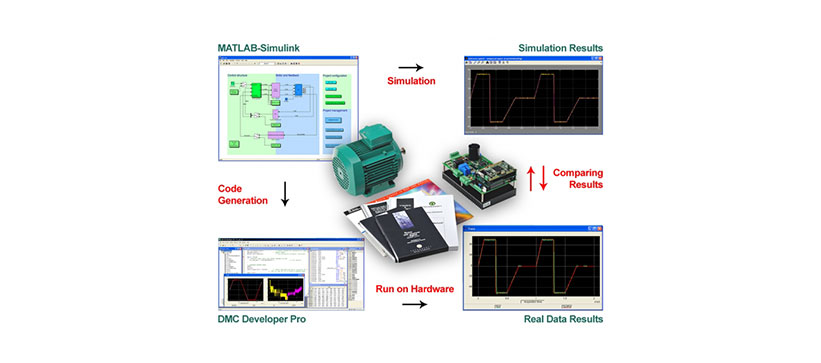

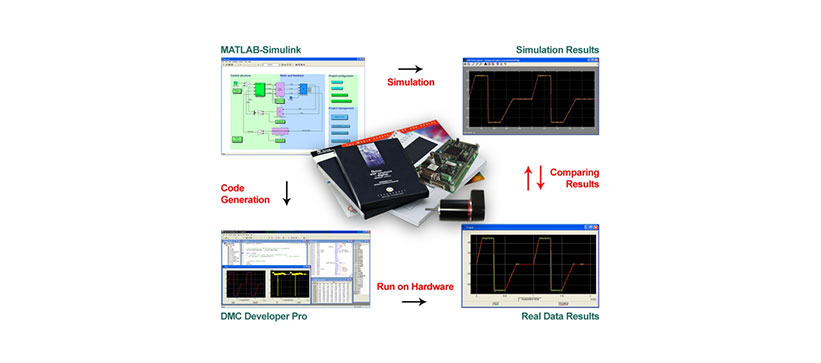

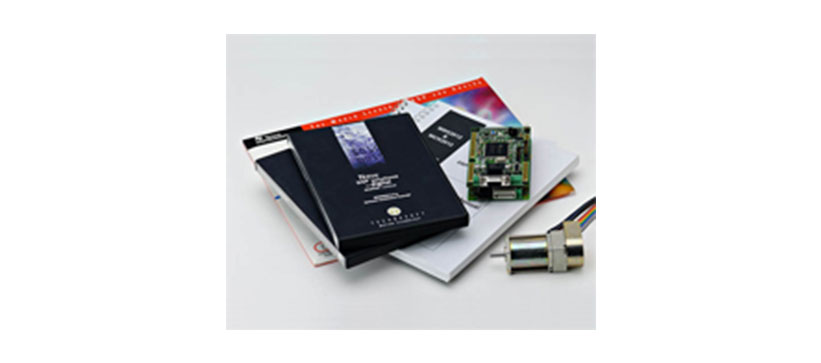

DSP Tools for Motion Control Technosoft digital motor control development tools will help you to learn, evaluate, develop, test and implem¬ent your own DSP motion control application. From simpler starter kits, to sophi¬sticated profes¬sional kits with source code for brushless/induction motor control and Matlab-Simulink libraries, choose the tool you need! Technosoft DSP kits are based on TI floating-point TMS320F28335, TMS320F28035, or fixed-point TMS320F2812 DSC's.

Signal Ranger DSP Kits for multi channel signal processing SignalRanger DSP board Series have been designed to perform a wide variety of signal processing operations to match your needs. Our boards are developed, tested and peer reviewed by specialists, professionals, teachers and individuals.

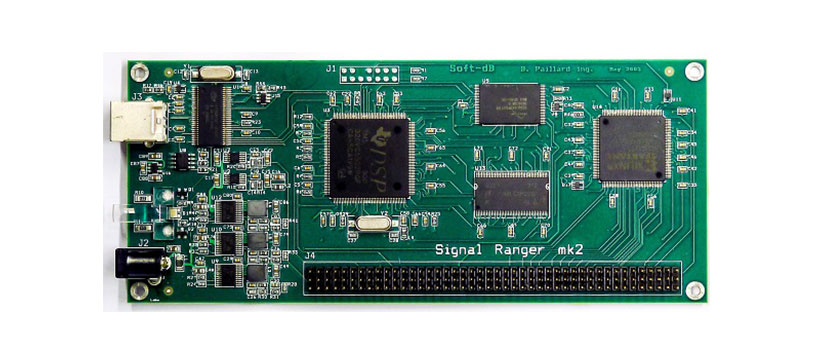

SR-MK2

Multi –channel Speech and Audio Acquisition and Processing

Multi-Channel Control

Instrumentation and Measurement

Vibro-Acoustic analysis

Acoustic array processing/Beamforming

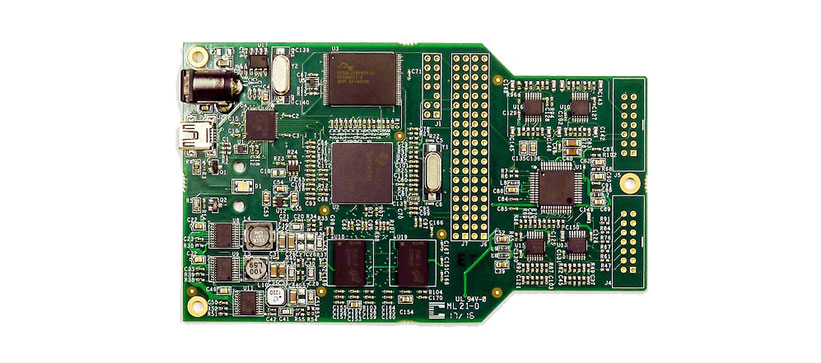

SR-MK3

SignalRanger_mk3 is a fixed point DSP board featuring a TMS320C6424 DSP running at 590 MHz, a 6-input/6-output 96 kHz/24-bit analog interface designed for pro-audio and high-performance control applications and a high-speed USB 2 interface, providing fast communications to the board.

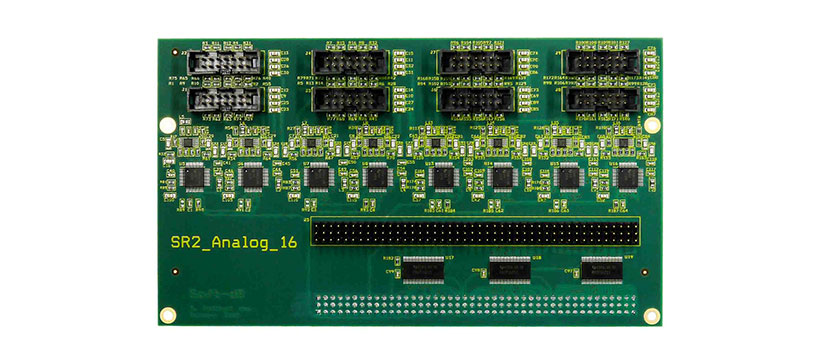

SR2_Analog16

Differential Analog Inputs

Number of inputs: 16 (synchronized)

Resolution: 16 bits

Sampling rate: 0 to 26 kHz (104 kHz w/o anti-aliasing filter)

Dynamic range: Single Ended: ±10V – Differential: ±20V

Electret Microphone Inputs

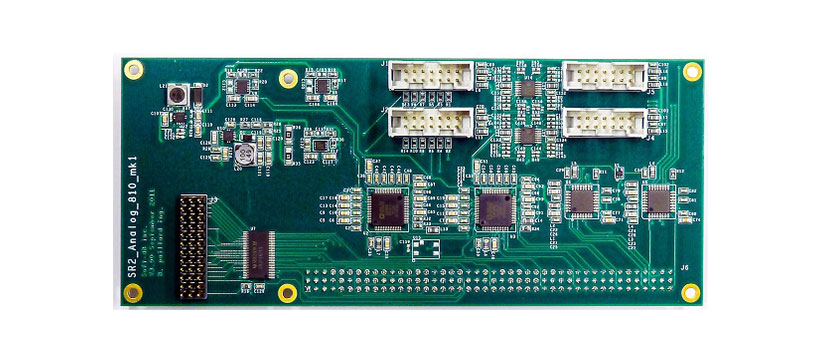

SR_A810

The SRA810 is designed for SPM control application or high speed control applications. Advanced SPM features can be implemented using 16 individually configurable GPIPOs and the two 16 bit counters
