C2000 Launch Pad

C2000 based Control Systems Design Tool

The C2000 performance 32-bit MCU development kits are designed for real time control for power electronics as well as control + automation for connectivity and system automation application.

Application: Motor drive and control, Automation and process control, Consumer and Portable electronics, Human Machine interface, Lighting, High end digital power.

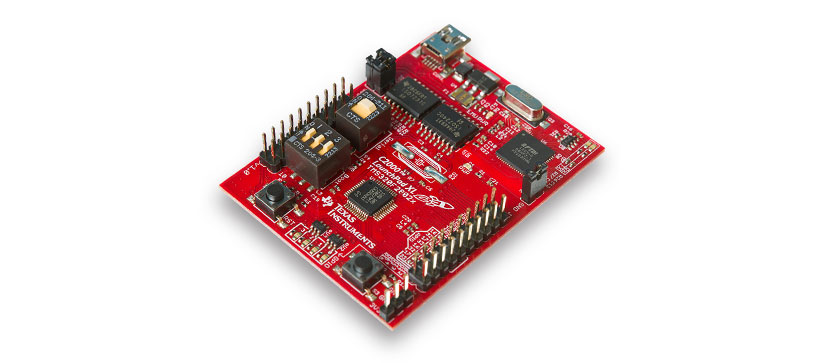

Real time MCU for power electronics control and digital signal processing

  • Featuring the 32-bit C2000™ TMS320F28027: @ 60MHz, 64 kB Flash / 12kB RAM.
  • Ideal for deeply embedded, cost and size sensitive control applications.



    • image

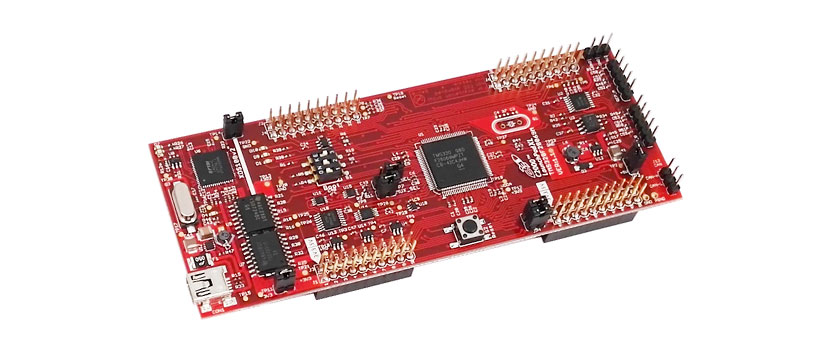

    High performance controller with InstaSPIN motor control software

  • Featuring the TMS320F28069M: 32-bit C2000 MCU @ 90MHz, 256kB Flash / 96kB RAM. InstaSPIN-MOTION and InstaSPIN-FOC enabled.
  • Motor control software in ROM implements InstaSPIN-FOC and InstaSPIN-MOTION solutions for 3 phase motors.

    •

    High performance device for real-time control and signal processing applications

  • Featuring the TMS320F28377S: 32-bit Delfino MCU @ 200 MHz, 1MB Flash / 164kB RAM with ECC.
  • Includes CLA real-time control coprocessor to respond to peripheral triggers and service time-critical functions.

    •

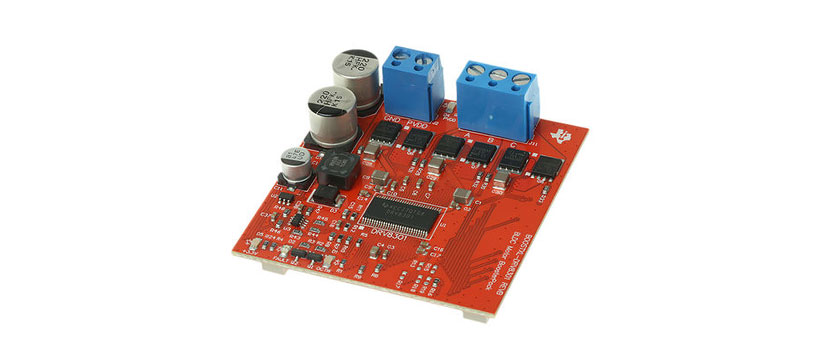

    The BOOSTXL-DRV8301 is 10A, 3-phase brushless DC drive stage based on the DRV8301 pre-driver and CSD18533Q5A NexFET™ power MOSFET

  • 6 to 24V supply input
  • Supports up to 14A peak, 10A continuous current output
